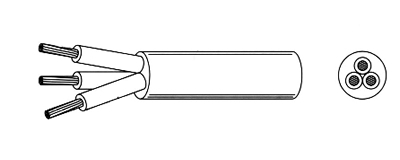

SJT SJTW

PVC Insulated PVC Sheathed Cords
PVC 絕緣 PVC 護套軟線
Rating:300V 60℃ ~105℃
Standard:UL 62 UL2556 CSA-C 22.2

Specification 規格		Conductor construction 導體結構 (No./mm)		Inslation thickness 絕緣厚度 (mm)	Sheath thickness 護套厚度 (mm)	Reference diameter 參考外徑 (mm)	Max Conductor resistance at 20℃ 20℃時導體電阻最大值 Ω/km
No.of core 芯數	AWG 線規	Conductor construction 導體結構 (No./mm)		Inslation thickness 絕緣厚度 (mm)	Sheath thickness 護套厚度 (mm)	Reference diameter 參考外徑 (mm)	Bare	Tinned
2		18	41/0.160	0.76	0.76	7.2±0.1	21.4	22.4
		16	26/0.254	0.76	0.76	7.7±0.1	13.4	14.1
		14	41/0.254	0.76	0.76	8.5±0.1	8.45	8.88
		12	65/0.254	0.14	0.76	9.7±0.1	5.31	5.58
3		18	41/0.160	0.76	0.76	7.7±0.1	21.4	22.4
		16	26/0.254	0.76	0.76	8.4±0.2	13.4	14.1
		14	41/0.254	0.76	0.76	9.2±0.1	8.45	8.88
		12	65/0.254	0.14	0.76	11.2±0.2	5.31	5.58
4		18
